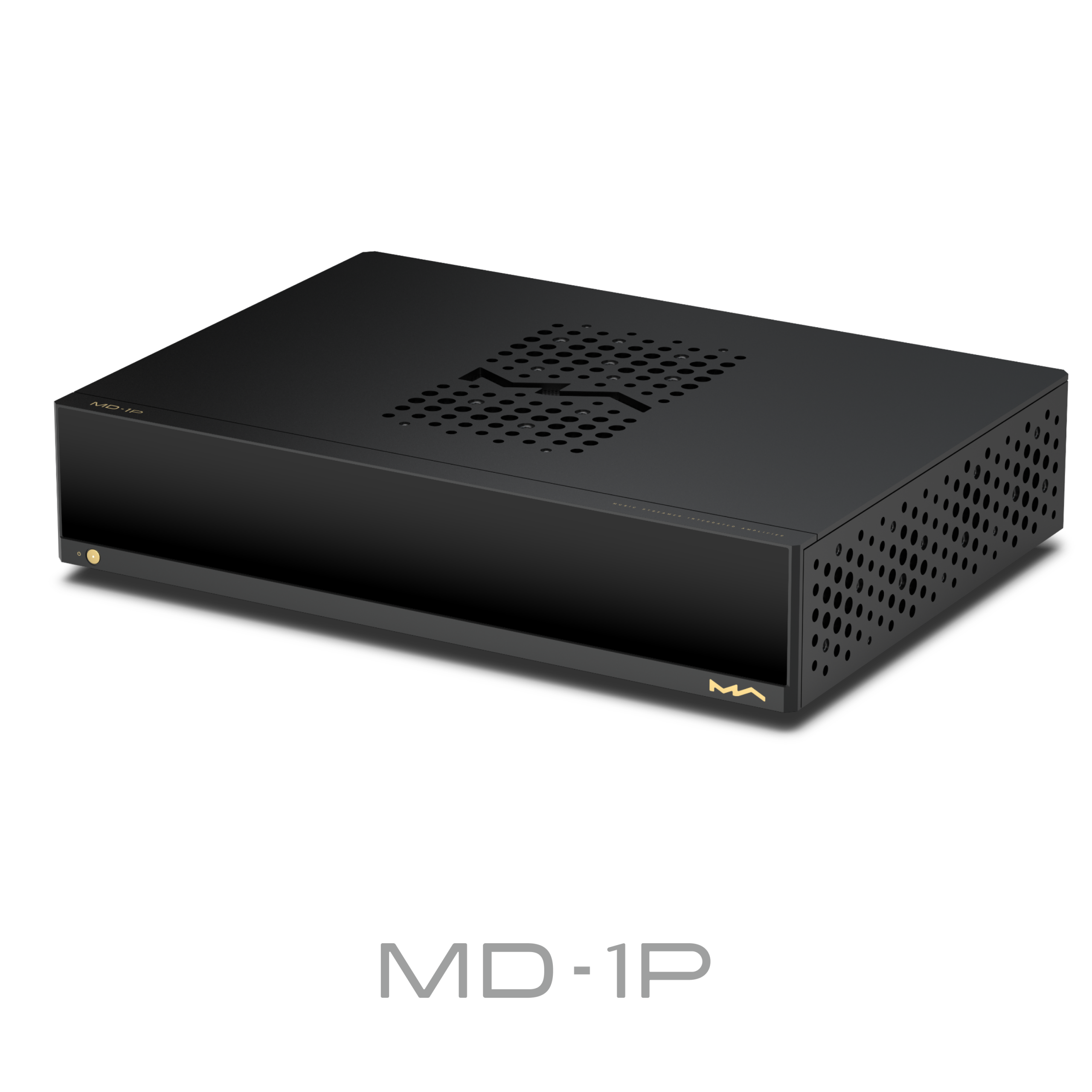

Matrix MD-1P

Output Power: 2 x 300 W RMS into 8 Ω.
Amplification Technology: High-efficiency Class D (PWM) for minimal heat and high energy efficiency (>90%).
Signal-to-Noise Ratio (SNR): 122 dB (A-weighted).
Frequency Response: 20 Hz – 20 kHz (±0.1 dB); extends to 45 kHz (-3 dB).
Output Impedance: Ultra-low < 3 mΩ for high speaker control.
Audio Processing
DAC Chip: AKM AK4493SEQ with VELVETSOUND architecture.
Clocking: Dual femtosecond clock architecture with a custom FPGA for jitter reduction.
Volume Control: 256-step digitally controlled analog preamp system (-80 dB to +12 dB in 0.5 dB steps). Connectivity
Network: Gigabit Ethernet, Wi-Fi 6 (2.4/5 GHz), and Bluetooth 5.0 (LDAC, aptX HD, AAC, SBC).
Digital Inputs: 4 x Coaxial/Optical (up to 24-bit/192kHz), HDMI ARC, and USB Audio (up to 32-bit/768kHz PCM, DSD512 native).
Analog Inputs: Balanced XLR, unbalanced RCA, and a dedicated MM Phono stage (+40 dB gain, 47 kΩ/100 pF).
Outputs: 2 pairs of gold-plated copper speaker terminals (A/B switching via remote), Dual Subwoofer outputs (150 Hz cutoff), and RCA Pre-outs.
Storage & Streaming
Internal Storage: Built-in NVMe SSD slot (supports M.2 2280/2242/2230) for local music hosting.
Streaming Protocols: Roon Ready, TIDAL Connect, Spotify Connect, AirPlay 2, DLNA/UPnP, and Qobuz.
Local Management: Supports CD ripping to internal SSD via external USB CD drive and the MA Remote App.
Physical & Power
Dimensions: 430 mm (W) × 331 mm (D) × 96 mm (H).
Weight: 7.6 kg.
Finish: Matte black
Power Consumption: < 5 W (Standby), < 45 W (Idle), < 1250 W (Max)

Tehnički podaci su preuzeti sa zvaničnih sajtova proizvođača i mogu biti izmenjeni bez prethodne najave ili obaveštenja.
