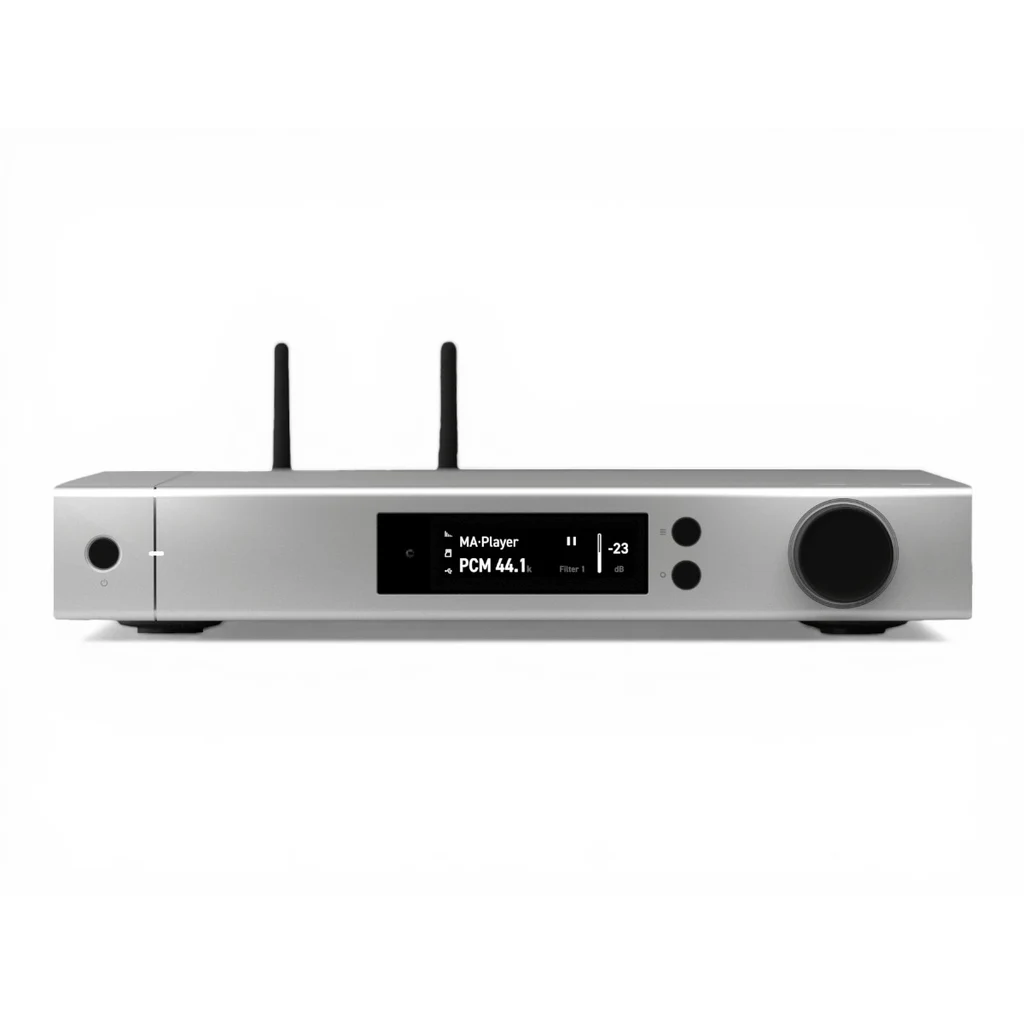

Matrix Element P

Inputs 2x Coaxial S/PDIF
2x Optical Toslink
2x USB-A
1x I2S HDMI LVDS
1x USB-B
1x Micro SD slot
1x Ethernet RJ45
WiFi
Output Speaker terminals
Supported sampling rate Coaxial, Optical : PCM up to 24bit 192kHz / DoP DSD64
I2S HDMI LVDS : PCM up to 32bit 768kHz / Native DSD up to DSD1024 / DoP DSD256
USB : PCM up to 24bit 768kHz / Native DSD up to DSD512 / DoP DSD256
SNR (speaker output) > -121dB
THD+N (speaker output) < 0.008% @ 1W (8Ω, 1k)
Frequency response (speaker output) 20Hz-20kHz ±0.25 -3dB @ 85kHz
Output impedance (speaker output) < 25mΩ
Ouput power (speaker output) (THD+N = 1%) 230W @ 4Ω
110W @ Ω
Gain (speaker output) +40dB
LAN 10BASE-T/100BASE-TX
WLAN 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac
Supported file formats MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF
Voltage supply AC220-240V 50/60Hz
AC100-120V 50/60Hz
Dimensions 340 x 281 x 60mm
Weight 4.7kg
