Matrix X/SPDF 3

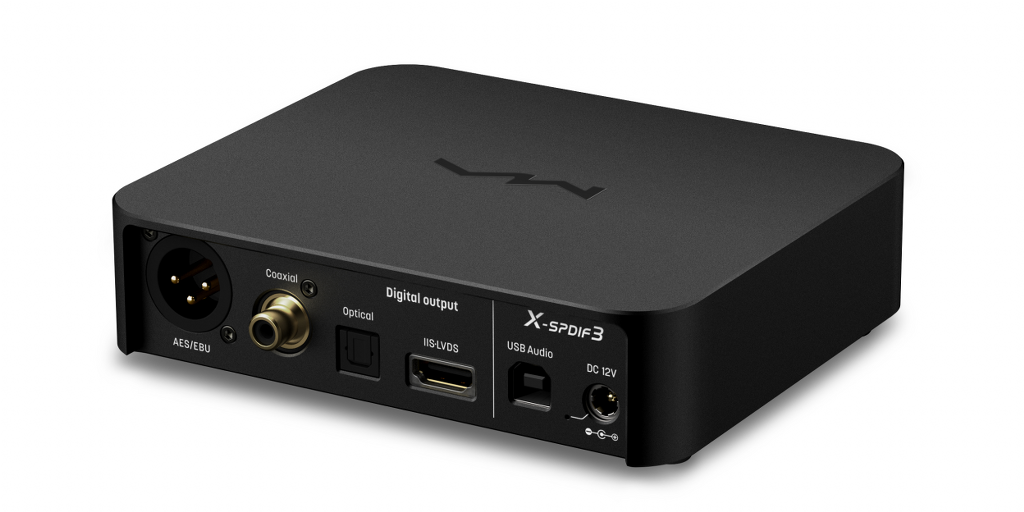

Input 1x USB-B
Outputs 1x I2S LVDS (HDMI)
1x Optical Toslink
1x Coaxial
1x AES/EBU
Supported sampling rates Optical / Coaxial / AES : PCM up to 24bit 192kHz, DSD DoP up to DSD64
I2S LVDS : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256
Compatibility Windows 7 / 8 / 8.1 / 10 / 11 (driver needed)
Mac OS X 10.6.4 or later
Android (via OTG cable)
iOS (via Camera Kit)
Suply voltage 5V 1000mA via USB
12VDC ≥400mA via external power supply (Jack DC 5.5/2.1mm) (sold separately)
Dimensions 142x124x38mm
Weight 1kg
Package 1x Matrix X-SPDIF3
1x USB cable

Tehnički podaci su preuzeti sa zvaničnih sajtova proizvođača i mogu biti izmenjeni bez prethodne najave ili obaveštenja.
